OMEGA™ sturdy multi-pin connectors provide an efficient means of joining multiwire thermocouple cables. They can be used with OMEGA's multipair extension cable for rapid, convenient and reliable connections. When used with MTC Series pins, the connector design utilizes a combination of resilient and rigid dielectric insulators to eliminate internal air voids and prevent the passage of air and moisture into or through the connector. Connectors can withstand ambient temperatures to 200°C, contributing to an extended connector life.
1. Standard Assembly Tools are
required to crimp and assemble
connectors properly. Order with
2. Match pins and sockets to
thermocouple alloys. Example:
A 12-cavity connector carries
6 thermocouple circuits (pairs)
requiring: 6 positive alloy pins or
sockets and 6 negative alloy pins
or sockets per body.
3. Order bodies in mating pairs.

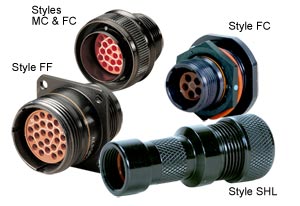

Style MC mates with both
style FF and style FC.
4. Backshell cable clamps are
recommended with each in-line
† All amounts shown in EUR, GBP, or USD Note: Contacts and connector bodies are sold separately. Backshell cable clamps provide effective support for the cable at the male or female connector and prevent twisting and pulling.
