IP66 Stainless Steel 30mm & 22 mm Pushbutton Enclosures

SCE-PBSS Series Stainless Steel Push Button Enclosures

Stainless Steel Switch Enclosures | SCE-PBSS Series Stainless Steel Push Button Enclosures

Stainless Steel Switch Enclosures

£174.00 SCE-6PBSS

RoHS
  • 1.9 mm thick Stainless Steel Type 304
  • Seams Continuously Welded and Ground Smooth
  • Captive Cover Screws Thread Into Sealed Wells
  • 4-Way Pushbutton Holes Accept All Brands of Oil-Tight Pushbuttons, Switches and Pilot Lights
  • Oil-Resistant Door Gasket
  • IP66 Ingress Protection Rating
  • Can Be Special Ordered in Type 316 Stainless Steel
NEMA Electrical Enclosures - View related products

Description

Application
Designed to house standard pushbuttons, switches and pilot lights in wet and hosed-down areas and in corrosive atmospheres.

Finish
#4 brushed finish on all exterior surfaces.

Industry Standards
NEMA Type 4, 4X, 12 & 13
UL Listed Type 4, 4X, & 12
CSA Type 4, 4X & 12
IEC 60529 IP 66

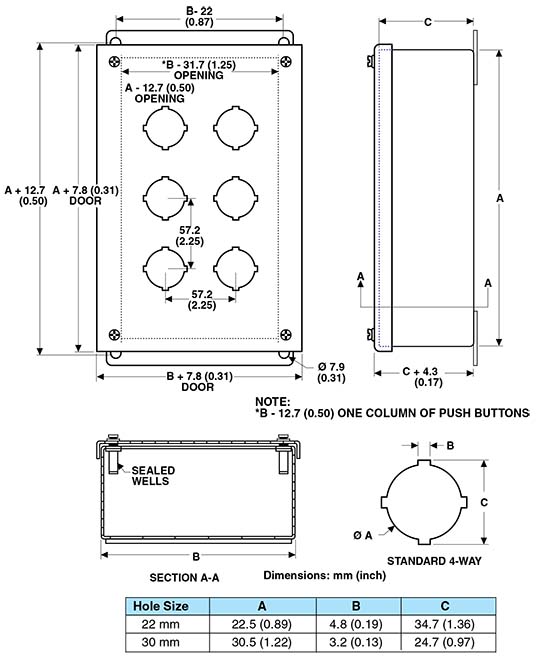

SCE_PBSS_PBXSS Series Dimension Diagrams
Place Order(Specify Model Number)
Part Number/Desc.
Availability
Price
Description
Qty
RoHS
Stainless Steel 30mm Push Button Enclosures
SCE-1PBSS
Star
Availability: 3 weeks
£86.00
1 PB enclosure, H 89, W 83, D 70 mm
RoHS compliant
SCE-2PBSS
Star
Availability: 3 weeks
£107.00
2 PB enclosure, H 146, W 83, D 70 mm
RoHS compliant
SCE-3PBSS
Star
Availability: 3 weeks
£117.00
3 PB enclosure, H 203, W 83, D 70 mm
RoHS compliant
SCE-4PBSS
Star
Availability: 3 weeks
£132.00
4 PB enclosure (1x4), H 260, W 83, D 70 mm
RoHS compliant
SCE-4PBXSS
Star
Availability: 3 weeks
£157.00
4 PB enclosure (1x4), H 254, W 102, D 121 mm
RoHS compliant
SCE-4SPBSS
Star
Availability: 3 weeks
£145.00
4 PB enclosure (2x2), H 184, W 159, D 76 mm
RoHS compliant
SCE-6PBSS
Star
Availability: 3 weeks
£174.00
6 PB enclosure (2x3), H 241, W 159, D 76 mm
RoHS compliant
SCE-9PBSS
Star
Availability: 3 weeks
£195.00
9 PB enclosure (3x3), H 241, W 216, D 76 mm
RoHS compliant
SCE-12PBSS
Star
Availability: 3 weeks
£223.00
12 PB enclosure (3x4), H 298, W 216, D 76 mm
RoHS compliant
SCE-16PBXSS
Star
Availability: 3 weeks
£279.00
16 PB enclosure (4x4), H 298, W 273, D 121 mm
RoHS compliant
Stainless Steel 22mm Push Button Enclosures
SCE-1PBSSI
Star
Availability: 3 weeks
£86.00
1 PB enclosure, H 89, W 83, D 70 mm
RoHS compliancy undetermined
SCE-2PBSSI
Star
Availability: 3 weeks
£107.00
2 PB enclosure, H 146, W 83, D 70 mm
RoHS compliancy undetermined
SCE-3PBSSI
Star
Availability: 1 week
£117.00
3 PB enclosure, H 203, W 83, D 70 mm
RoHS compliancy undetermined
SCE-4PBSSI
Star
Availability: 3 weeks
£132.00
4 PB enclosure (1x4), H 260, W 83, D 70 mm
RoHS compliancy undetermined
SCE-4PBXSSI
Star
Availability: 3 weeks
£157.00
4 PB enclosure (1x4), H 254, W 102, D 121 mm
RoHS compliancy undetermined
SCE-4SPBSSI
Star
Availability: 3 weeks
£145.00
4 PB enclosure (1x4), H 184, W 159, D 76 mm
RoHS compliancy undetermined
SCE-6PBSSI
Star
Availability: 3 weeks
£173.00
6 PB enclosure (2x3), H 241, W 159, D 76 mm
RoHS compliancy undetermined
SCE-9PBSSI
Star
Availability: 3 weeks
£195.00
9 PB enclosure (3x3), H 241, W 216, D 76 mm
RoHS compliancy undetermined
SCE-12PBSSI
Star
Availability: 3 weeks
£223.00
12 PB enclosure (3x4), H 298, W 216, D 76 mm
RoHS compliancy undetermined
SCE-16PBXSSI
Star
Availability: 3 weeks
£279.00
16 PB enclosure (4x4), H 298, W 273, D 121 mm
RoHS compliancy undetermined
Accessories
OMPBD7-AHA1
Star
Availability: 1 week
£8.70
30mm to 22mm Adapter (mount 22mm PB's in 30mm holes), stainless steel
RoHS compliancy undetermined
POWER CORD-SE-M16
Star
Availability: 1 week
£6.00
2.4 metre long Power cable with M16 cable gland strain relief, 3x1.33 mm², 250Vac max.
RoHS compliancy undetermined
