IP55 Steel Enclosures for 22mm & 30 mm Switch Bodies

SCE-PB Series Pushbutton Enclosures

Boxes for mounting 22mm & 30 mm Switches | SCE-PB Series Pushbutton Enclosures

Boxes for mounting 22mm & 30 mm Switches

£77.00 SCE-6PB

RoHS
  • Made from 1.9mm Thick Carbon Steel
  • IP55 Rated for Dust and Water Protection
  • Continuously Welded Seams
  • Captivated Cover Screws Thread Into Sealed Wells
  • 4-way Puhbutton Holes Accept all Brands of Oil-Tight Pushbuttons, Switches and Pilot Lights
  • Hole Diameter is 30.5mm
  • Oil-Resistant Gasket
NEMA Electrical Enclosures - View related products

Description

Application
Designed to offer protection for oil-tight pushbuttons, switches, and pilot lights from dust, water, dirt and oil.

Finish
ANSI-61 grey powder over phosphatized surfaces.

Industry Standards
NEMA Type 12 & Type 13
UL Listed Type 12
CSA Type 12
IEC 60529 IP 55

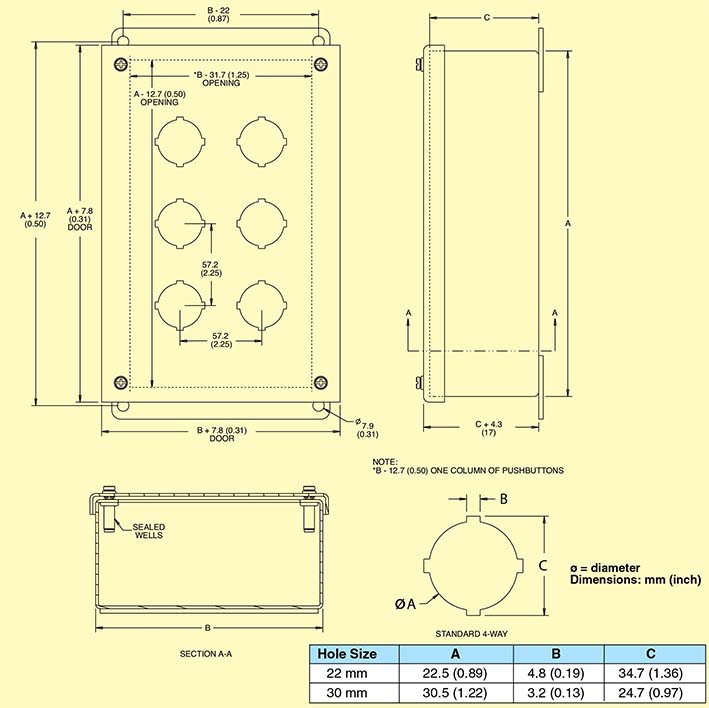

SCE_PB Series Dimensions Diagram
Place Order(Specify Model Number)
Part Number/ Desc.
Qty
RoHS
Description
IP55 Steel Boxes for 30.5mm Switch Bodies
Quick Ship
SCE-1PB
£42.00
Availability: 3 weeks
RoHS compliant
1 cut-out enclosure, H 89 W 83 D 70 mm
Quick Ship
SCE-2PB
£48.00
Availability: 1 week
RoHS compliant
2 cut-out enclosure, H 146 W 83 D 70 mm
Quick Ship
SCE-3PB
£55.00
Availability: 3 weeks
RoHS compliant
3 cut-out enclosure, H 203 W 203 D 70 mm
Quick Ship
SCE-4PB
£60.00
Availability: 3 weeks
RoHS compliant
4 cut-out enclosure (1x4), H 260 W 83 D 70 mm
Quick Ship
SCE-4SPB
£67.00
Availability: 3 weeks
RoHS compliant
4 cut-out enclosure (2x2), H 184 W 159 D 76 mm
Quick Ship
SCE-5PB
£65.00
Availability: 3 weeks
RoHS compliant
5 cut-out enclosure, H 318 W 83 D 70 mm
Quick Ship
SCE-6PB
£77.00
Availability: 3 weeks
RoHS compliant
6 cut-out enclosure (2x3), H 241 W 159 D 76 mm
Quick Ship
SCE-6PBVL
£73.00
Availability: 3 weeks
RoHS compliant
6 cut-out enclosure (1x6),H 375 W 83 D 70 mm
Quick Ship
SCE-8PB
£87.00
Availability: 3 weeks
RoHS compliant
8 cut-out enclosure (1x8), H 515 W 83 D 70 mm
Quick Ship
SCE-9PB
£89.00
Availability: 3 weeks
RoHS compliant
9 cut-out enclosure (3x3), H 241 W 216 D 76 mm
Quick Ship
SCE-12PB
£100.00
Availability: 3 weeks
RoHS compliant
12 cut-out enclosure (3x4), H 298 W 216 D 76 mm
IP55 Steel 22mm Pushbutton Enclosures
Quick Ship
SCE-1PBI
£42.00
Availability: 1 week
RoHS compliancy undetermined
1 cut-out enclosure, H 89 W 83 D 70 mm
Quick Ship
SCE-2PBI
£48.00
Availability: 1 week
RoHS compliancy undetermined
2 cut-out enclosure, H 146 W 83 D 70 mm
Quick Ship
SCE-3PBI
£53.00
Availability: 3 weeks
RoHS compliancy undetermined
3 cut-out enclosure, H 203 W 203 D 70 mm
Quick Ship
SCE-4PBI
£60.00
Availability: 3 weeks
RoHS compliancy undetermined
4 cut-out enclosure (1x4), H 260 W 83 D 70 mm
Quick Ship
SCE-4SPBI
£67.00
Availability: 3 weeks
RoHS compliancy undetermined
4 cut-out enclosure (2x2), H 184 W 159 D 76 mm
Quick Ship
SCE-5PBI
£65.00
Availability: 3 weeks
RoHS compliancy undetermined
5 cut-out enclosure, H 318 W 83 D 70 mm
Quick Ship
SCE-6PBI
£70.00
Availability: 3 weeks
RoHS compliancy undetermined
6 cut-out enclosure (2x3), H 241 W 159 D 76 mm
Quick Ship
SCE-6PBVLI
£73.00
Availability: 3 weeks
RoHS compliancy undetermined
6 cut-out enclosure (1x6), H 375 W 83 D 70 mm
Quick Ship
SCE-8PBI
£87.00
Availability: 3 weeks
RoHS compliancy undetermined
8 cut-out enclosure (1x8), H 515 W 83 D 70 mm
Quick Ship
SCE-9PBI
£89.00
Availability: 3 weeks
RoHS compliancy undetermined
9 cut-out enclosure (3x3), H 241 W 216 D 76 mm
Quick Ship
SCE-12PBI
£91.00
Availability: 3 weeks
RoHS compliancy undetermined
12 cut-out enclosure (3x4), H 298 W 216 D 76 mm
Base and Column Accessories
Quick Ship
SCE-18SBASE
£91.00
Availability: 3 weeks
RoHS compliant
Pedestal Base 457 x 457 x 25 mm
Quick Ship
SCE-24SBASE
£210.00
Availability: 3 weeks
RoHS compliant
Pedestal Base 610 x 610 x 25 mm
Quick Ship
SCE-44CCOL
£150.00
Availability: 3 weeks
RoHS compliant
Straight Column 100 x 100 x 890 mm
Quick Ship
SCE-44PBCOL
£196.00
Availability: 3 weeks
RoHS compliant
Angled Column 100 x 100 x 890 mm
Quick Ship
SCE-66CCOL
£225.00
Availability: 3 weeks
RoHS compliant
Straight Column 150 x 150 x 890 mm
Quick Ship
SCE-66PBCOL
£296.00
Availability: 3 weeks
RoHS compliant
Angled Column 150 x 150 x 890 mm
Quick Ship
OMPBD7-AHA1
£10.25
Availability: 1 week
RoHS compliancy undetermined
30mm to 22mm Adapter (mount 22mm PB's in 30mm holes), stainless steel
All amounts shown in EUR, GBP, or USD
Ordering Example: (1) SCE-1PB IP55 rated Pushbutton Enclosure, £42.00
