Temperature Isolation Coil for G¼ & ¼ NPT Pressure Sensors

PXM-COIL

Pressure Sensor Cooling Coil | PXM-COIL

Pressure Sensor Cooling Coil

£104.00 PXM-COIL

  • Reduces the temperature of the media before contact with the pressure sensor
  • For use with gas or steam up to 200°C or liquids to 150°C
  • For pressure ranges up to 400 Bar
  • Stainless steel SS316
Accessories - View related products

Description

The PXM-COIL is designed to extend the working temperature range of Omega pressure sensors with G¼ male (¼" BSPP) process connections. The PXM-COIL has a G¼ male connection to the process and a G¼ (¼"BSPP) female connection for the pressure sensor to be screwed into.

The PX-COIL is also designed to reduce the temperature of the media being measured, allowing lower cost Omega pressure sensors with ¼-18 NPT male thread process connections to be used in applications where higher specification pressure sensors have previously been used. The PX-COIL has a ¼ male connection to the process and a ¼-18 NPT female connection for the pressure sensor.

The cooling coil allows standard transducers to work with higher temperature media, typically 200°C for steam or gas and 150°C for liquids. The all stainless steel construction maintains chemical compatibility with many fluids and gases.

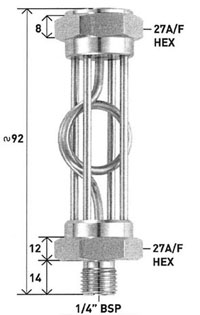

Dimensions in mm
Place Order(Specify Model Number)
Part Number/ Desc.
Qty
Description
Quick Ship
PXM-COIL
£104.00
Availability: In Stock

Cooling coil for G¼ & ¼"BSPP pressure sensors
Quick Ship
PXMW-4
£2.20
Availability: In Stock

Stainless steel/Nitrile bonded seal washer ¼"
Quick Ship
PX-COIL
£104.00
Availability: 4 weeks

Cooling coil for ¼ NPT pressure sensors. (¼ NPT female for pressure sensor and ¼ NPT male for process)
All amounts shown in EUR, GBP, or USD
Note: Maximum Pressure 400 bar
